XB-PJ12-06AB05-01| 製品 ID | 商品画像 | 商品説明 | 製品コード | 生産状況 | 配送サイクル | 商品の総重量 | MPQ | MOQ | 輸送中の生産 | 競争力のある購入 | 作戦 |
XB-PJ12-06AB05-01  3D
 図面 |
  |

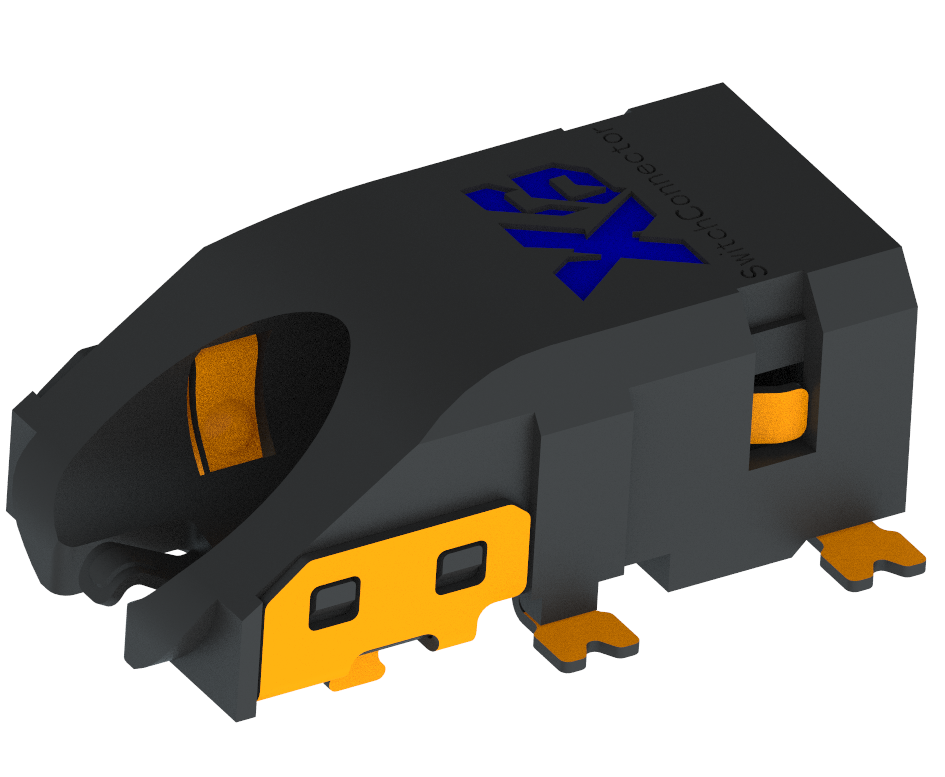

3.5イヤホンソケット4.7 H斜め口、板上型、前四挿し後二貼り | 通常 | 1～2週間 | 0.000 | 500 | 2000 | 10000 |  兼容渓榜 |
| 产品材质 | terminal 1: | Phosphor Bronze,tin | ||
| terminal 2: | Phosphor Bronze,tin | |||
| terminal 3: | Phosphor Bronze,tin | |||
| terminal 4: | Phosphor Bronze,tin | |||
| plastic: | Pbt | |||
| 环境条件 | Temperature range: | -20 °C/+70 °C | ||
| Mating cycles: | 5000 | |||
| Insertion force: | 5–20 N | |||
| Withdrawal force: | 4–20 N | |||
| 电气数据 | Contact resistance: | ≤ 30 mΩ | ||
| Rated current: | 0.5 A | |||
| Rated voltage: | 30 V AC/DC | |||
| Rated impulse voltage: | 500 V/60 s | |||
