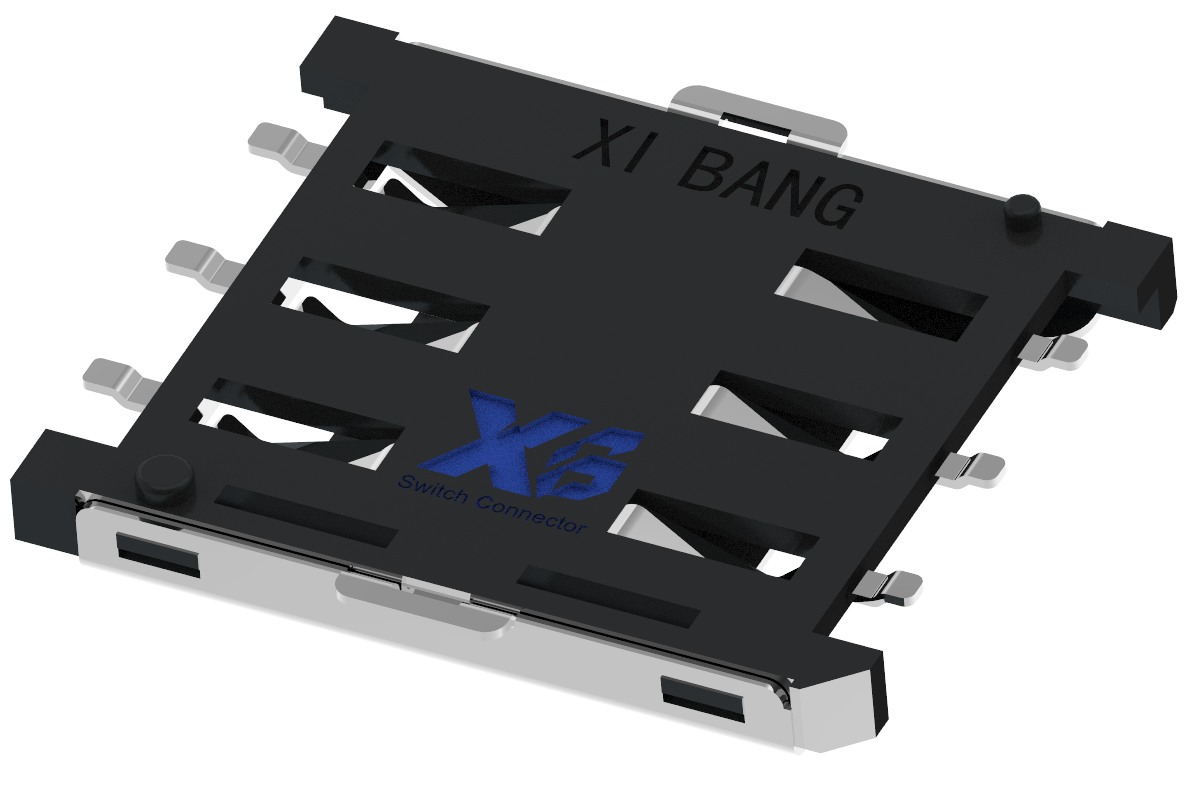

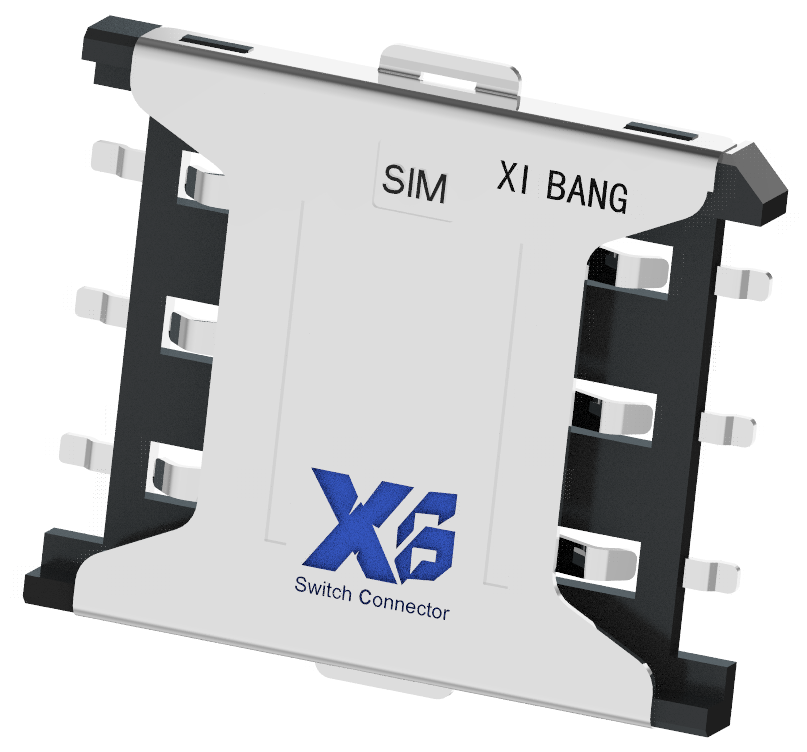

3D fileXB-CSM-30621D02-LF Specifications SIM
DrawingsXB-CSM-30621D02-LF

▍Xibang material number：XB-CSM-30621D02-LF

Product type: SiM socket connector Rated current: 0.5A Rated voltage: 5.5V DC Withstand voltage: 250V AC

Insertion and extraction force: 0.3N-0.9N Contact resistance: 30m Ω max Insulation resistance: 100 M Ω min Service life: 5000 times

Plastic Material: LCP/PA Spring Material: SUS304 Shell: SUS Stainless Steel Terminal Electroplating: Silver/Gold Plating

Working temperature: -30 ℃~+85 ℃ Installation method: Surface mount Packaging method: 1000PCS/Reel Product compliance: ROHS

3D file and drawings

3D fileXB-CSM-30621D02-LF Specifications SIM

Part number information
Technical Features
Technical Drawings
Product Specifications

Product ID	Product Image	Product Description	Product Code	Production status	Shipping Cycle	Gross item weight	MPQ	MOQ	Production in transit	Competitive purchases	Operation
XB-CSM-30621D02-LF 3D Drawings		NANO card slot SMI/SIM card slot/CARD card slot/NANO SIM card slot connector/NANO SIM socket/MIRCO card slot SIM	SIM card holder/SIM connector	Normal	1-2 weeks	0.42g	1000 PCS/disk	30000 PCS/box	10000	No competitors	Consult

product material	1.Sim card holder/SIM connector	Material
	2.Plastic	LCP/PA/UL94V-0
	3. High temperature resistant materials	LCP/PA/UL94V-0
	4.Terminal	copper alloy
	5. Shell	SUS

Electrical properties	Rated current	0.5A DC
	Rated voltage	5.5 DC
	Insertion and extraction force	0.3N-0.9N
	Withstand voltage	250VAC
	Insulation resistance	100MΩ
	Contact resistance (initial/after life)	30MΩ

Durability	No load life	5000 times
	Load life (maximum rated load)	5000 times

Environmental resistance	Cold resistance	-40±2℃ for 48h
	Heat resistance	85±2℃ for 48h
	Moisture resistance	40±2℃, 90 to 95%RH for 48h

Weldability	Immerse the soldering terminals into velvet tin at 235°C for 3±0.5s with a minimum immersion depth of 2mm.	More than 95% of the surface of the tin-immersed part must be well dipped in tin

Resistant to reflow heat	Preheating: 150°C~200°C 60~120s Heating 217°C 60s Heating peak 260°CMAX: 5s~10s	The appearance should be free of damage, the terminals should not be loose, and the plastic should not be deformed.
