| Product Center > Switch > Rocker switch

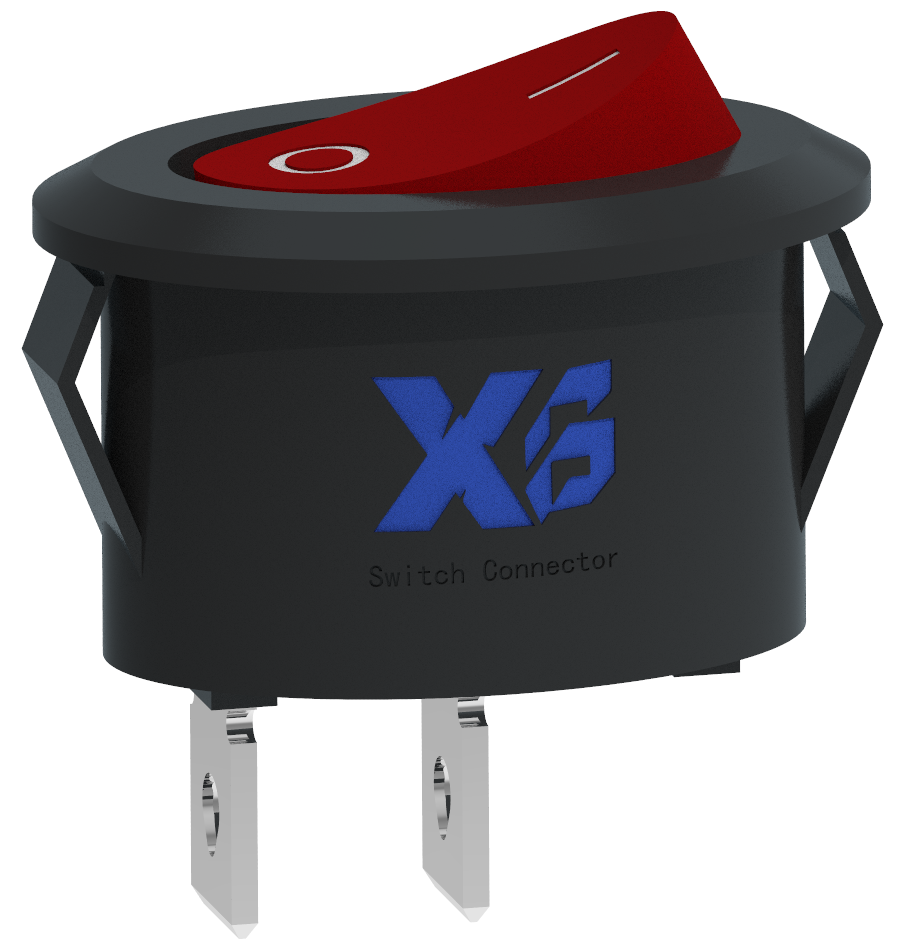

▍Xibang material number：XB-RS601E-1010011BB-ZP

Product type: Rocker switch Rated current: 6A 10A AC Rated voltage: 125V 250V AC Contact resistance: 30m Ω max

Voltage resistance: 1500V Insulation resistance: 100 M Ω min Life test: 10000 times Working temperature: -10 ℃ ± 105 ℃

Plastic: PA66 Pin Material: Brass Welding Waterproof: Solder Wire/Solder Plate Product Compliance: UL.VDE.ROHS

3D files and drawings

3D filesXB-RS601E-1010011BB-ZP Specifications XB
3D filesXB-RS601E-1010011BB-ZP Specifications XB

Part number information
Technical Features
Technical Drawings
Product Specifications

Product ID	Product Image	Product Description	Product Code	Production status	Shipping Cycle	Gross item weight	MPQ	MOQ	Production in transit	Competitive purchases	Operation
XB-RS601E-1010011BB-ZP 3D Drawings		Circular ship type switch 2 positions 3 positions/ship type switch 2 positions 3 positions/rocker switch 2 positions 3 positions 25 * 17 * 14.8mm power switch 6A 10A/ship type switch 125V/250V/ON OFF/high current switch 6A 10A/ship type switch 6A 10A		Normal	7-15 days	0.3g	1000	5000	1000	Compatible Xibang	Consult
XB-RS601E-1010011BB-ZP 3D Drawings		Circular ship type switch 2 positions 3 positions/ship type switch 2 positions 3 positions/rocker switch 2 positions 3 positions 25 * 17 * 14.8mm power switch 6A 10A/ship type switch 125V/250V/ON OFF/high current switch 6A 10A/ship type switch 6A 10A		Normal	7-15 days	0.3g	1000	5000	1000	Compatible Xibang	Consult

Product type features	1. Ship type switch	material quality
	2. Button	PA66
	3. Shell	Nylon / PA66 / 94V-0~2
	4. The base	PA66
	5. Feet	Brass silver plated

	1. Operating temperature range:	-10℃±105℃
	2. Rated value:	6A 10A 125V 250AC
	3. Insulation resistance:	100MΩ
	4. Voltage resistance:	1500V AC
	5. Contact resistance:	30MΩ
	6. Life:	10000 Times

structural property	Operation force:	5N~9N
	Terminal strength:	80N
	Salt Spray Test:	35±0.2°C 24/h

Environmental resistance	Cold resistance	-20±2℃ 96/h
	resistance to effect of heat	105±2℃ 96/h
	Moisture resistance	40 ± 2℃ relative humidity 90~95% 96 / h

Product EIA Compliance Document

English version of PPA

SPCC English

Stainless steel English version

Nickel plating English version

English version of tin plating

Silicone English

Brass English

Phosphor copper English version

Compliant with EU RoHS (2011/65/EU) Directive

Complies with EU ELV Directive 2000/53/EC requirements
