▍Xibang material number：XB-TX60U-M

Product name:XT60 connector rated current:30A rated voltage:500V DC voltage:500V DC torque:18N~45N

Contact resistance:0.55MΩ Use temperature:-40°C±120°C Insulation resistance:2000MΩ Use life:5000次 Product code:ROHS

3D files and drawings

3D filesXB-TX60U-M Specifications XT60
3D filesXB-TX60U-M Specifications XT60

Part number information
Technical Features
Technical Drawings
Product Specifications

Product ID	Product Image	Product Description	Product Code	Production status	Shipping Cycle	Gross item weight	MPQ	MOQ	Production in transit	Competitive purchases	Operation

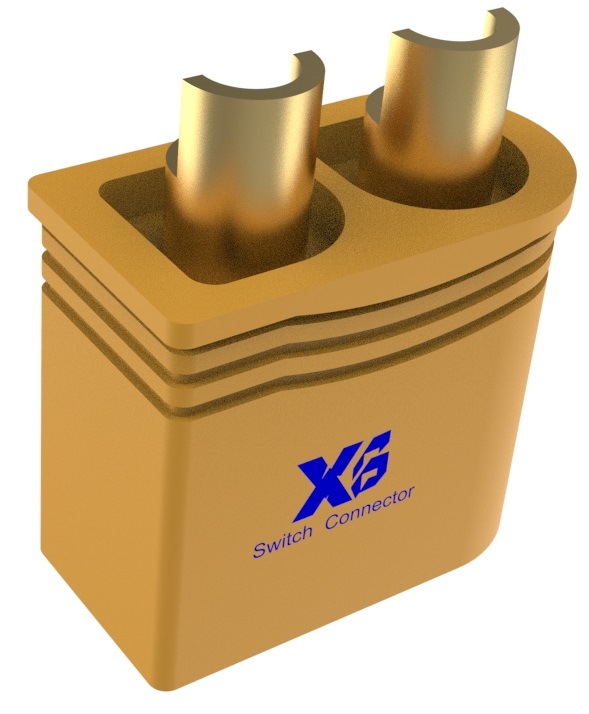

XB-TX60U-M 3D Drawings		15.7 * 13.75 * 8.6mm aircraft model 2-core male female seat XT60/automotive 2PIN male female plug-in connector XT60/2-core high-power charging socket XT60/new energy 2-core male female XT60/lithium battery connector XT60 gold-plated/2P terminal male female XT60	XT connector	Normal	5 days/7 days	0.25g	1000	3000	100000	Compatible Xibang	Consult
XB-TX60U-M 3D Drawings		15.7 * 13.75 * 8.6mm aircraft model 2-core male female seat XT60/automotive 2PIN male female plug-in connector XT60/2-core high-power charging socket XT60/new energy 2-core male female XT60/lithium battery connector XT60 gold-plated/2P terminal male female XT60	XT connector	Normal	5 days/7 days	0.25g	1000	3000	100000	Compatible Xibang	Consult

product material	1.XT60 connector	Material
	2.Hardware	gold plated brass
	3. Plastic shell	PA66
	4.Surface treatment	Gold plating (1μ~3μ)

Electrical properties	Rated current	30A
	Rated voltage	500V DC
	Insertion and extraction force	18N~45N
	Withstand voltage	500V DC
	Insulation resistance	2000MΩ
	Protection level	IP40
	Creepage distance	4.64mm
	Contact resistance (initial/after life)	0.55MΩ

Durability	No load life	5000 times
	Load life (maximum rated load)	5000 times
Environmental performance	Operating temperature	-20°C±120°C

Wiring recommendations:
AWG	Temperature rise 60°C	Temperature rise 85°C
12#	40A	45A
14#	30A	35A

Product EIA Compliance Document

English version of PPA

SPCC English

Stainless steel English version

Nickel plating English version

English version of tin plating

Silicone English

Brass English

Phosphor copper English version

Compliant with EU RoHS (2011/65/EU) Directive

Complies with EU ELV Directive 2000/53/EC requirements
