XB-X04AIIWA1DY1017| Product ID | Product Image | Product Description | Product Code | Production status | Shipping Cycle | Gross item weight | MPQ | MOQ | Production in transit | Competitive purchases | Operation |
XB-X04AJIWA1DY1017  3D
 Drawings |
  |

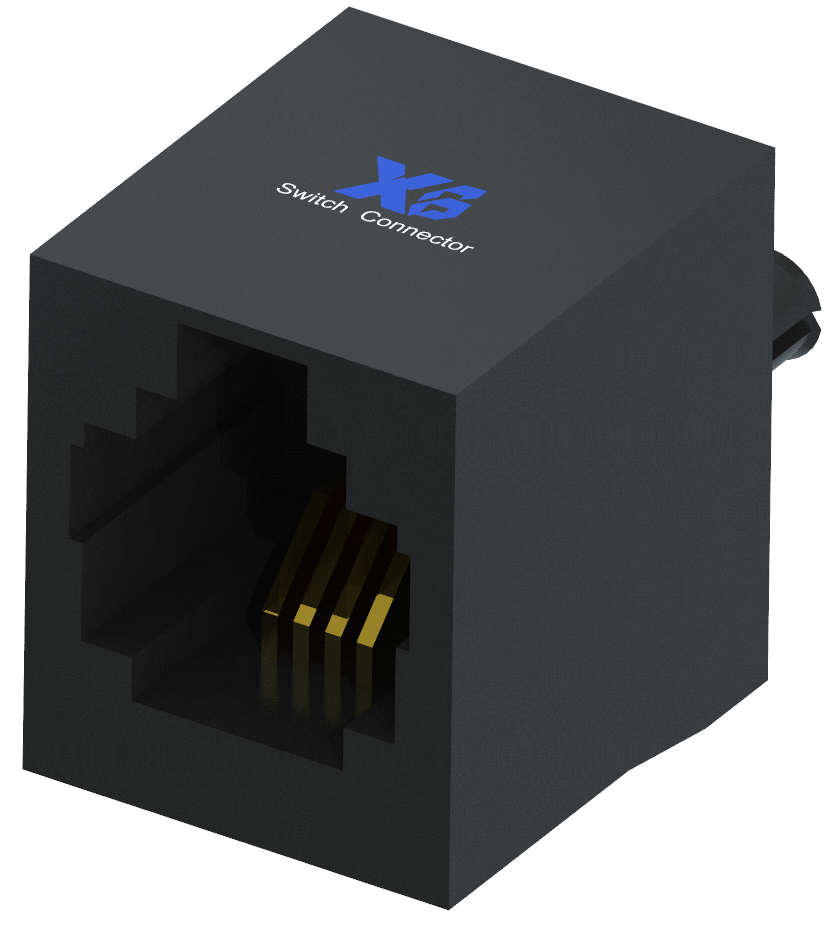

13.5 * 16.45 * 16.25mm RJ11 socket 1 × 1/Network port RJ45 interface/Network RJ45 connector/RJ45 female socket/RJ network interface 1 bit/Illuminated RJ45 socket network end/Network port connector RJ45 | Normal | 1-2 weeks | 0.000 | 110 pieces/box | 550 | 10000 |  Compatible Xibang |
| Product material | 1. TheRJ11 connector | material quality |
| 2. Shell: | Brass, C2680 | |
| 3. Base: | PA66 | |
| 4. Rubber core material: | PBT / UL 94 V-0 / Black | |
| 5. Terminal material: | Phosphorous Bronze C5210 | |
| 6. Shielded layer material: | Brass C2680 / None | |
| Product type features | Type of connector: | The mother end |
| direction: | 90°/180° | |
| withstand voltage: | 1000V AC 0.5mA | |
| insulation resistance: | 500 MΩ | |
| contact resistance: | 40mΩ≥10mΩ | |
| Terminal pin: | 4PIN | |
| End-connection features | Terminal terminal type: | Direct insertion/Horizontal insertion/Vertical insertion |
| PCB termination method: | plug-in components | |
| Storage environment | Storage-based ambient temperature: | - 40 ℃～ + 85 ℃ |
| Electrical parameters | Core number: | 4PIN |
| rated current: | 1.5A | |
| rated voltage: | 125V AC | |
| service environment | Welding temperature (max.): | 260°C |
| endurance life: | 750 Times | |
| Welding experiment: | 235°±5°C | |
| operating temperature range: | -40°C ~ +85°C | |
| Operation / application | Gigabit line: | No |
| Whether to bring the light: | No | |
| Packaging characteristics | Packaging method: | Disacking / suction packaging |
