XB-DSPV-M02P| Product ID | Product Image | Product Description | Product Code | Production status | Shipping Cycle | Gross item weight | MPQ | MOQ | Production in transit | Competitive purchases | Operation |
XB-DSPV-M02P  3D
 Drawings |
  |

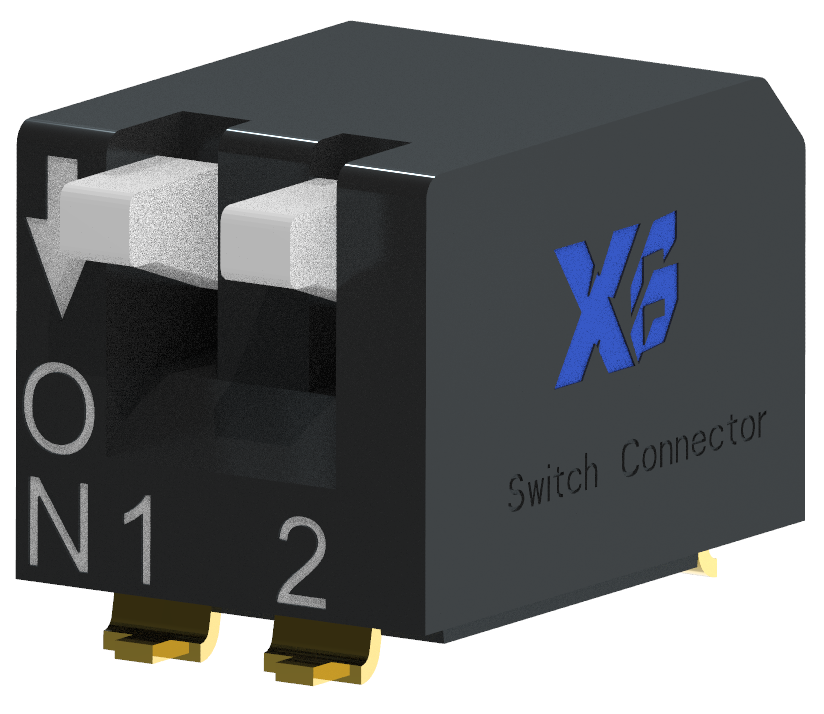

2-position dial switch side sticker, with a spacing of 2.54mm, horizontal sticker with a 2-position dial switch of 90 degrees, side sticker with a 2-position program switch black shell, SMT convex handle of the 2-position code switch SMT with a patch, side sticker with a 2-position toggle switch SMT pin spacing of 2.54mm, side sticker with a 2-position sliding switch SMD | Normal | 5-7 days | 0.05kg | 1000 | 20000 | Normal |  Compatible Xibang |
 Product material
|
1. DIP switch SMT | material |
| 2. The shell | PA66 (red, blue and black) | |
| 3. The base | PA66 (red, blue and black) | |
| 4. Terminal | Brass gold plated | |
| Use the temperature range | -40℃ to +85℃ | |
| Maximum rating (resistance load) | 0.1A 50V DC (when powered on) | |
| Minimum rating (resistance load) | 25mA 24V DC (when switched on and closed) | |
| Electroplating material for terminal contact: | Copper gilt | |
| Electric performance | withstand voltage | 500V AC |
| insulation resistance | 100MΩ min. | |
| Contact resistance (initial / post-life) | 30mΩ max. | |
| lasting quality | No load life | 3000 Times |
| load life | 3000 Times | |
| Environmental resistance | Cold resistance | -40℃ 250h |
| resistance to effect of heat | 85℃ 250h | |
| Moisture resistance | 60℃, 90 to 95%RH 250h | |
| welding condition | ||
| Reflux welding | ||
| 1. Heating mode | Up and down heating mode for far-infrared heating | |
| 2. Temperature measurement method with | The CA (K) or CC (T) measurement position of φ 0.1 φ 0.2 is fixed at the welding joint (copper foil surface) | |
| 3. Temperature distribution |
|
|
| (1) The above conditions are the temperature of the surface of the zero part of the printed circuit board. According to the circuit board material, size, thickness, etc., the temperature of the circuit board and the switch surface temperature will be very different, about the switch surface temperature, please also use in the above conditions. | ||
| (2) According to the type of veneer welding groove, different conditions and different results, please fully confirm in advance before use. | ||
| When immersed in welding | preheat temperature | Maximum temperature of 120°C |
| Preheat temperature time | Up to 90 seconds | |
| welding temperature | 270±5℃ | |
| Welding impregnation time | 10±1s max. | |
| Hand welding | welding temperature | 350±5℃ |
| Continuous welding time | Up to 5 seconds | |
