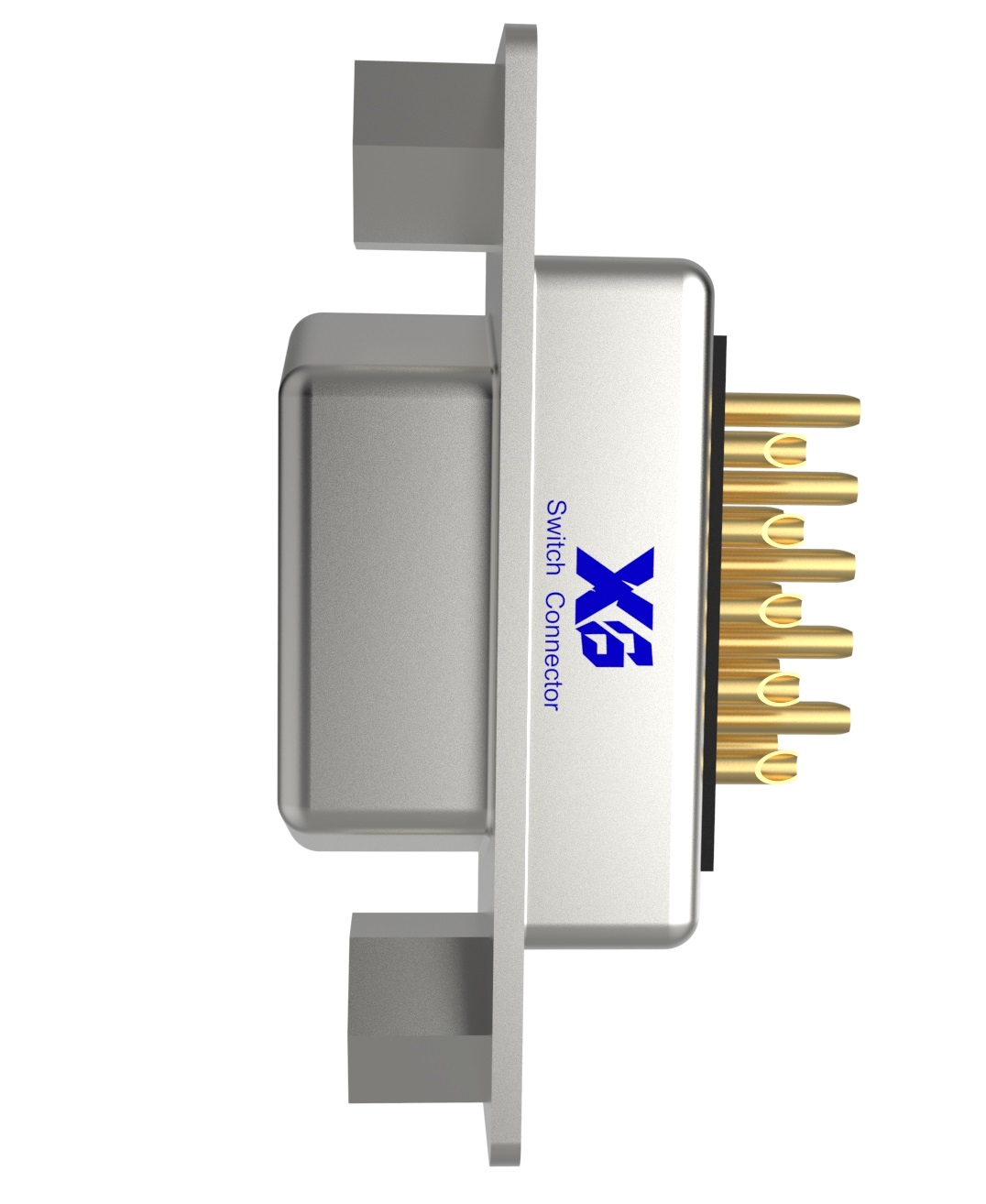

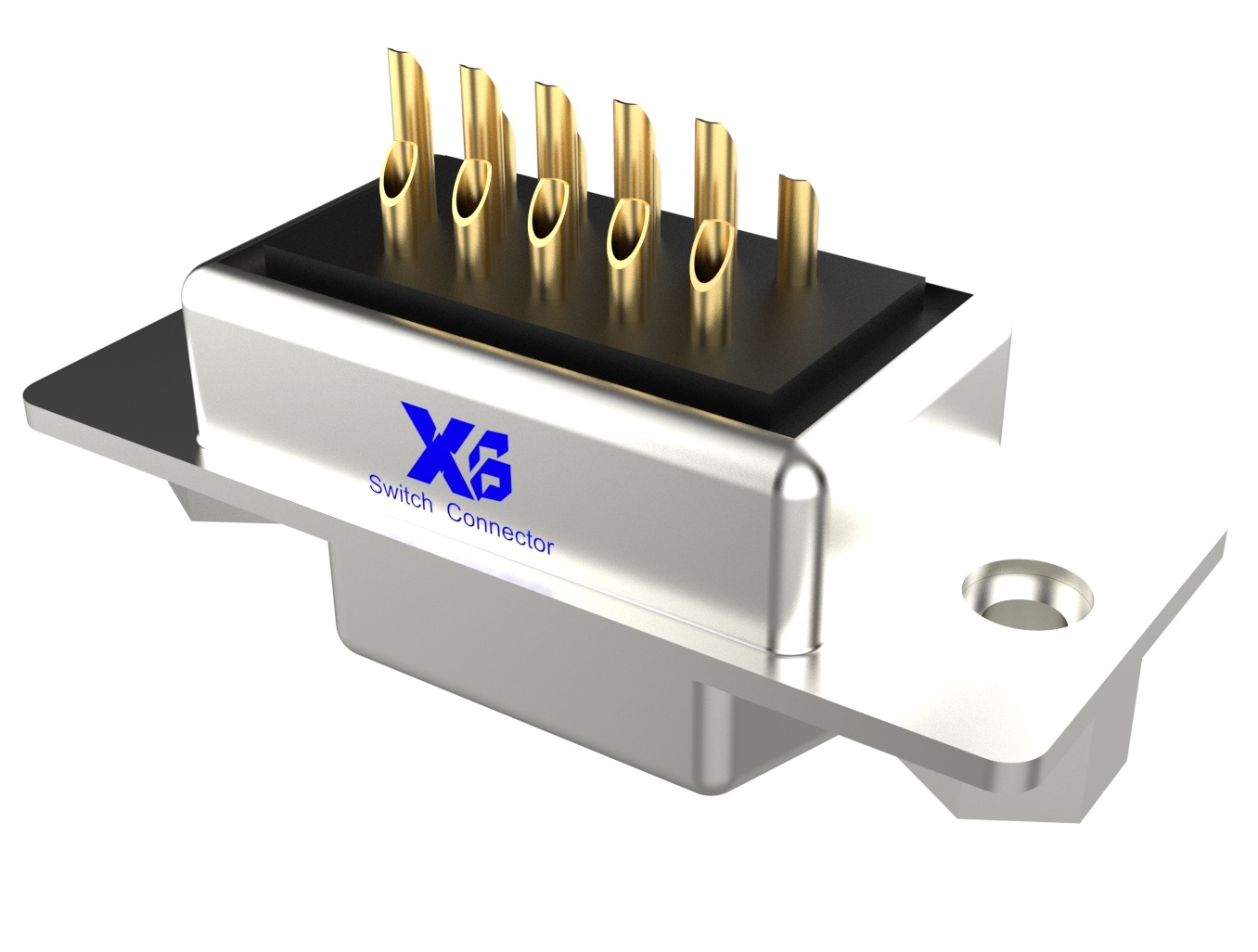

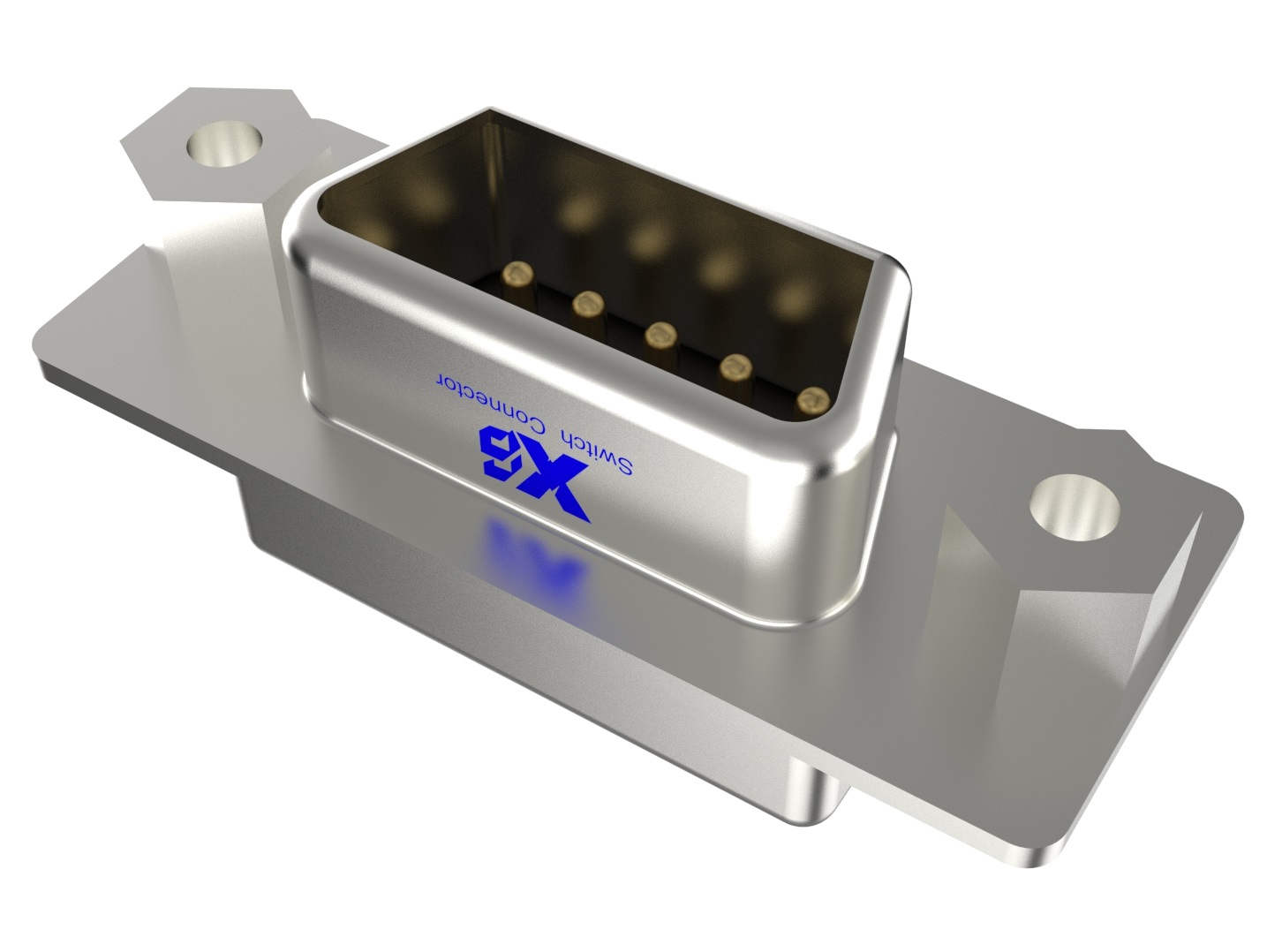

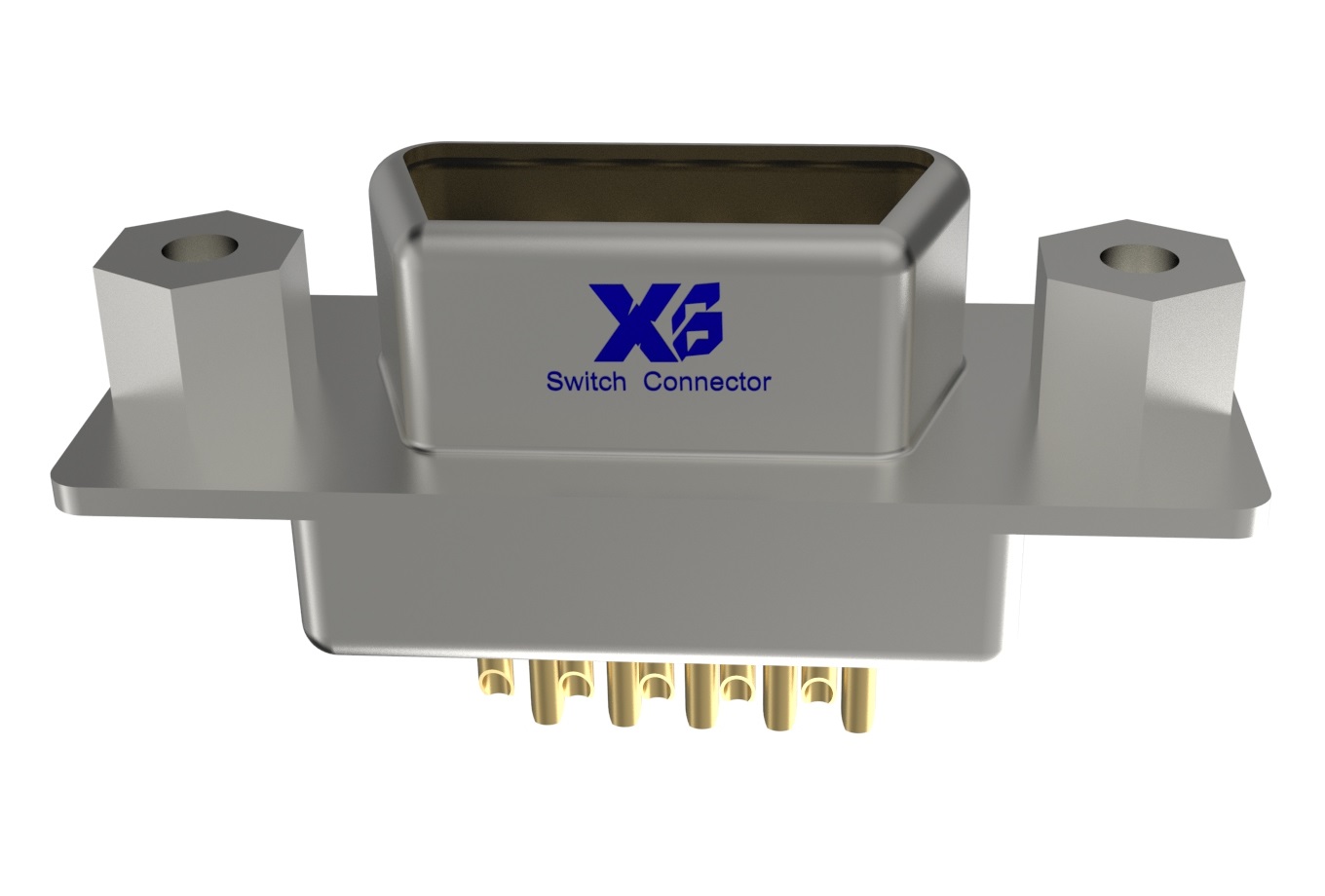

▍Xibang material number：XB-DIN-115

Product Name: DIN BMW Head Connector Rated Current: 2A 4A DC Rated Voltage: 12V 30V DC Withstand Voltage: 300V AC

Contact resistance: 30M Ω Insulation resistance: 100M Ω Insertion and extraction force: 25N~45N Welding temperature: 230 ℃± 5 ℃

Plastic base: PBT metal material: brass H65 electroplating process: copper gold plating/copper silver plating Service life: 5000 times

3D files and drawings

3D filesXB-DIN-115 Specifications DIN
3D filesXB-DIN-115 Specifications DIN
3D filesXB-DIN-115 Specifications DIN
3D filesXB-DIN-115 Specifications DIN

Part number information
Technical Features
Technical Drawings
Product Specifications

Product ID	Product Image	Product Description	Product Code	Production status	Shipping Cycle	Gross item weight	MPQ	MOQ	Production in transit	Competitive purchases	Operation
XB-DIN-115 3D Drawings		30.8 * 12.6 * 10.8mm S terminal female socket/S terminal connector/DIN plug/DIN male socket/DS power socket/S terminal male socket/S terminal plug/DS socket/DS connector/DS male socket		Normal	1-2 weeks	0.3g	1000 pieces/box	5000	10000	Compatible Xibang	Consult
XB-DIN-115-X 3D Drawings		30.8 * 12.6 * 10.8mm S terminal female socket/S terminal connector/DIN plug/DIN male socket/DS power socket/S terminal male socket/S terminal plug/DS socket/DS connector/DS male socket		Normal	1-2 weeks	0.3g	1000 pieces/box	5000	10000	Compatible Xibang	Consult
XB-DIN-115-X-X 3D Drawings		30.8 * 12.6 * 10.8mm S terminal female socket/S terminal connector/DIN plug/DIN male socket/DS power socket/S terminal male socket/S terminal plug/DS socket/DS connector/DS male socket		Normal	1-2 weeks	0.3g	1000 pieces/box	5000	10000	Compatible Xibang	Consult
XB-DIN-115-X-X-X 3D Drawings		30.8 * 12.6 * 10.8mm S terminal female socket/S terminal connector/DIN plug/DIN male socket/DS power socket/S terminal male socket/S terminal plug/DS socket/DS connector/DS male socket		Normal	1-2 weeks	0.3g	1000 pieces/box	5000	10000	Compatible Xibang	Consult

product material	1. DIN connector	material
	2. Plastic	PBT
	3. Shell	PBT
	6. Terminal	Brass/Silver Plated/Gold Plated

	Operating temperature range	-20°C±70°C
	Maximum rating (resistive load)	4A 30V DC
	Minimum rating (resistive load)	2A 12V DC

electrical properties	withstand voltage	300V AC
	Insulation resistance	100mΩmax
	Insertion force	25N~45N
	Contact resistance	30mΩmax

Durability	no load life	5000 times
	load life	5000 times

Environmental resistance	Cold resistance	-40±3℃ for 96h
	Heat resistance	80±2℃ for 96h
	Humidity resistance	40±2℃, 90 to 95%RH for 96h

1. Temperature change experiment	According to the figure below, after 5 cycles, the test is carried out after 30 minutes under normal conditions.
3. Temperature distribution
3. Temperature distribution
When hand soldering	soldering temperature	260°C max.
	Preheat time	60 seconds maximum
	Continuous immersion time	3 seconds maximum
	Welding times	1

Durability
Solderability Test	The top of the terminal is immersed in the solder pool to a depth of 2mm at a temperature of 250±5°C for 3 seconds	More than 95% of the surface of the immersed part will be covered by tin
	Lead-free tin test composition: tin 96.5% copper 3% silver 0.5%

Solder resistance test	When hand soldering, the temperature should be controlled at 300±5°, and the time should be 3±0.5s, but abnormal pressure should not be applied to the terminals	The body has no deformation and can meet the mechanical and electrical performance
	Lead-free tin test composition: tin 96.5% copper 3% silver 0.5%

Corrugated welding	When using a low-wave oven for soldering, the maximum temperature setting is 260°C

	Preheating temperature: The ambient temperature of the soldering surface of the PC board is up to 100°C	No damage to appearance or mechanical function
	Warm-up time: up to 60 seconds
	Soldering temperature: up to 235°C
	Continuous dipping time: up to 3 seconds
	Number of welds: up to 1 time

Product EIA Compliance Document

English version of PPA

SPCC English

Stainless steel English version

Nickel plating English version

English version of tin plating

Silicone English

Brass English

Phosphor copper English version

Compliant with EU RoHS (2011/65/EU) Directive

Complies with EU ELV Directive 2000/53/EC requirements
