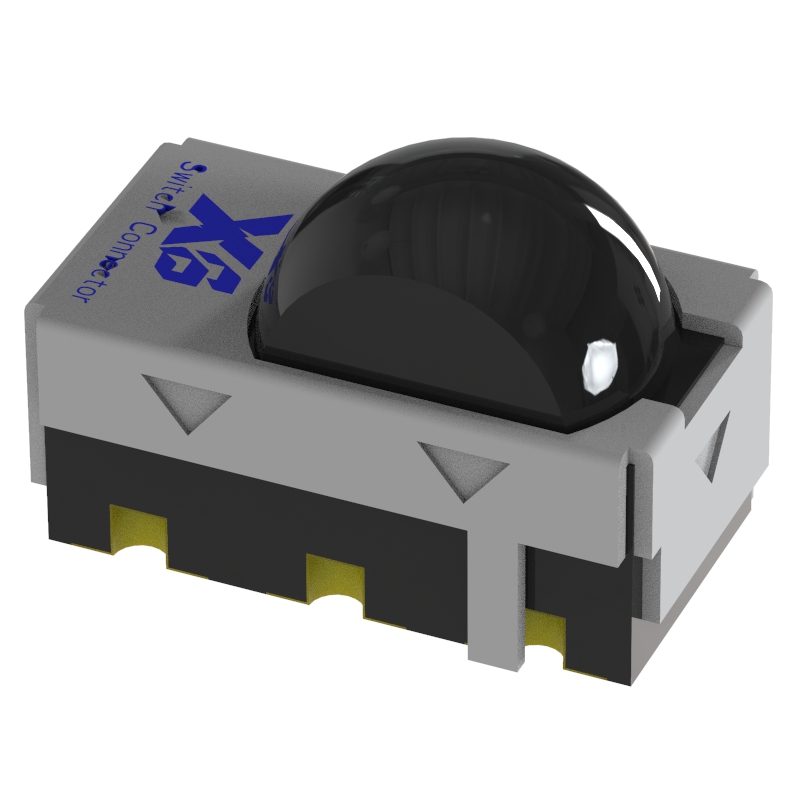

▍Xibang material number：XB-IRM-H5xxT

Product type: Remote control signal receiving module Rated current: 5mA Rated voltage: 6V Lifetime test: 5000 times Installation method: Welding electroplating process: Brass silver plating Operating temperature: -25 ℃± 85 ℃ Product recognition Certificate: ROHS

3D files and drawings

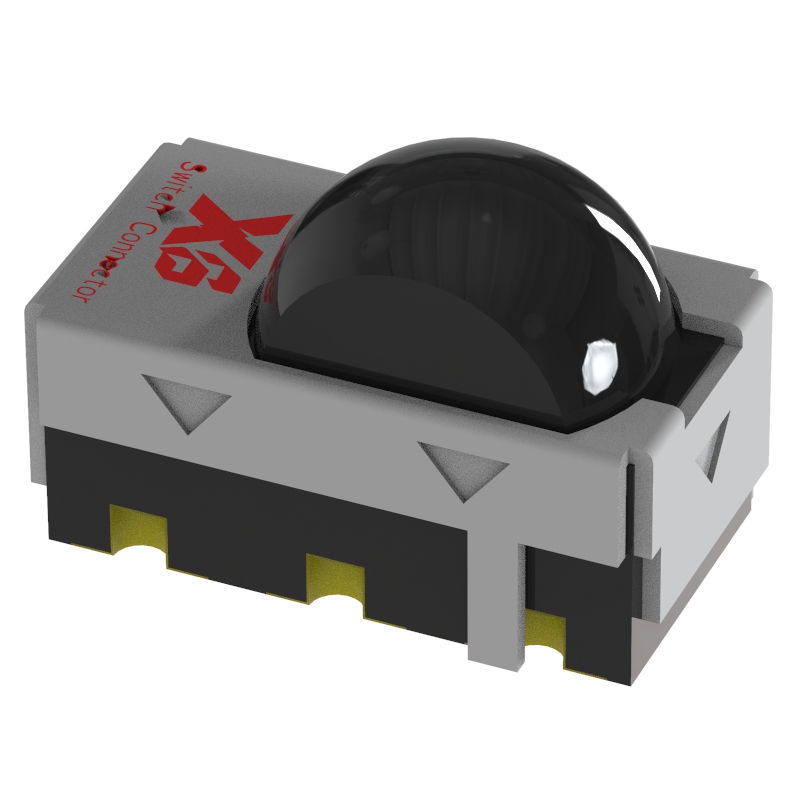

3D filesXB-IRM-H5xxM3 Specifications IRM
红外接收头頭应用手册_V1.2简中-1
3D filesXB-IRM-H5xxM3 Specifications IRM
红外接收头頭应用手册_V1.2简中-1

Part number information
Technical Features
Technical Drawings
Product Specifications

Product ID	Product Image	Product Description	Product Code	Production status	Shipping Cycle	Gross item weight	MPQ	MOQ	Production in transit	Competitive purchases	Operation
XB-IRM-H5xxT 3D Drawings		5.3 * 2.9 * 2.24mm infrared receiver head/remote control signal receiver head/infrared photoelectric device dot infrared receiver head/infrared receiver head anti-interference/remote control receiver head/induction remote control infrared head/infrared receiver/infrared receiver head/remote control receiver 4PIN	IRM-V5xx series	Normal	A week	0.36g	1000	3000	100000	Compatible Xibang	Consult
XB-IRM-H5xxT-X 3D Drawings		5.3 * 2.9 * 2.24mm infrared receiver head/remote control signal receiver head/infrared photoelectric device dot infrared receiver head/infrared receiver head anti-interference/remote control receiver head/induction remote control infrared head/infrared receiver/infrared receiver head/remote control receiver 4PIN	IRM-V5xx series	Normal	A week	0.36g	1000	3000	100000	Compatible Xibang	Consult

product type	1.IRM-V5xx series

characteristic	• Suitable for continuous encoding
	• Strong resistance to ambient light
	• Lead-free and RoHS compliant

Application areas	• Set top box
	• television
	•AC
	• Sweeping robot
	• Audio and other AV equipment
	• multi-media equipment
	• Other devices using infrared remote controls

Product EIA Compliance Document

English version of PPA

SPCC English

Stainless steel English version

Nickel plating English version

English version of tin plating

Silicone English

Brass English

Phosphor copper English version

Compliant with EU RoHS (2011/65/EU) Directive

Complies with EU ELV Directive 2000/53/EC requirements
