| Product Center > Switch > Blade switch

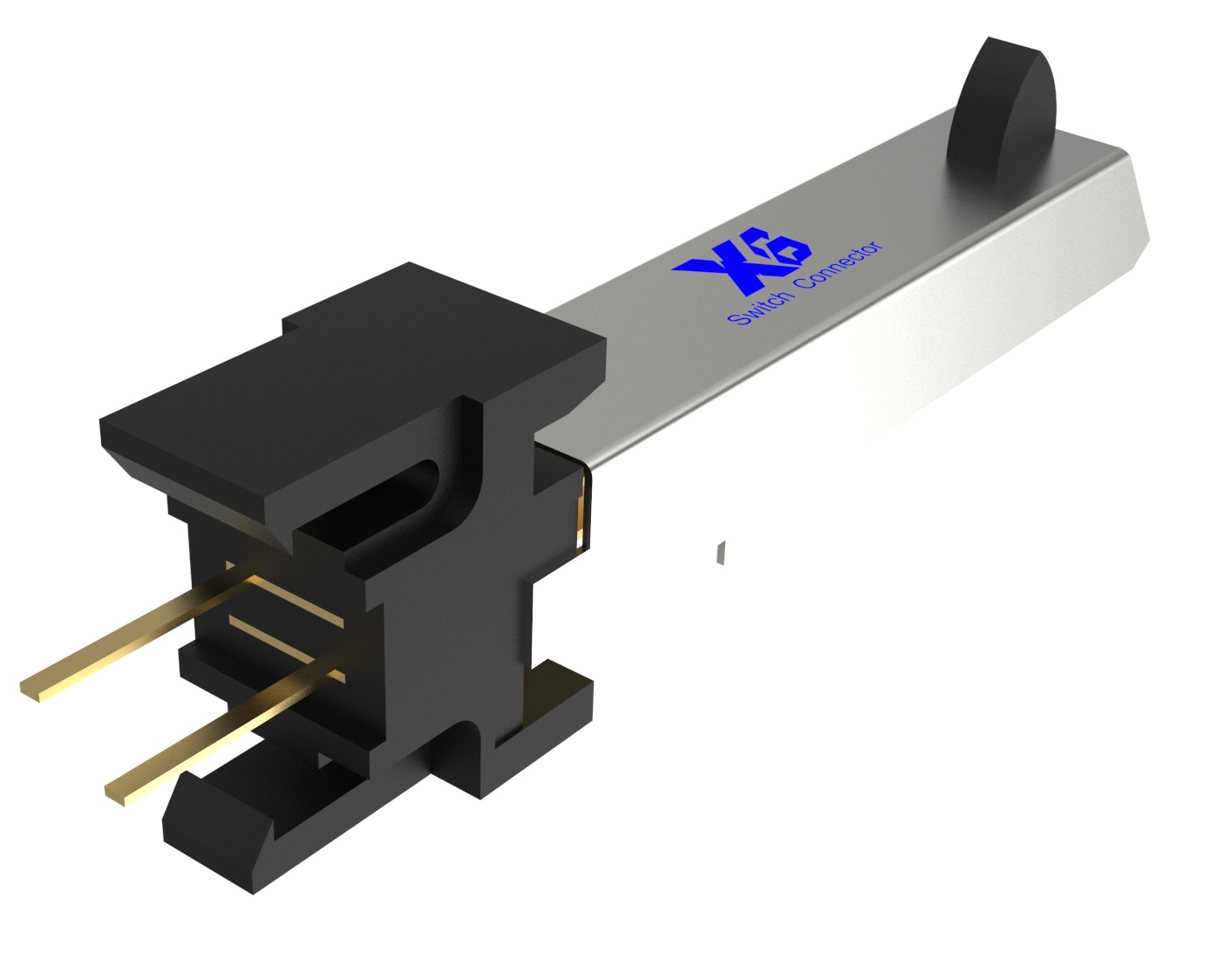

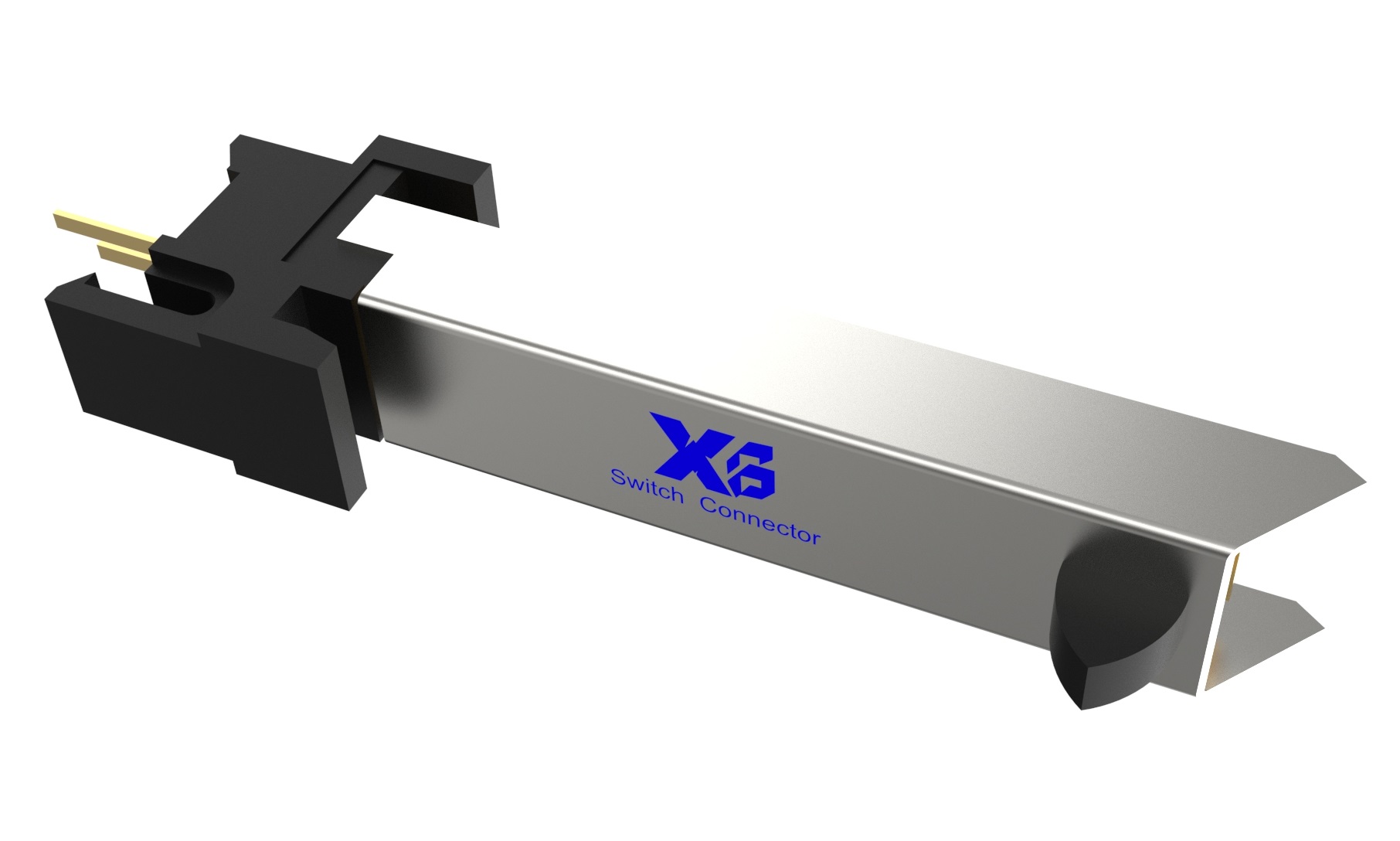

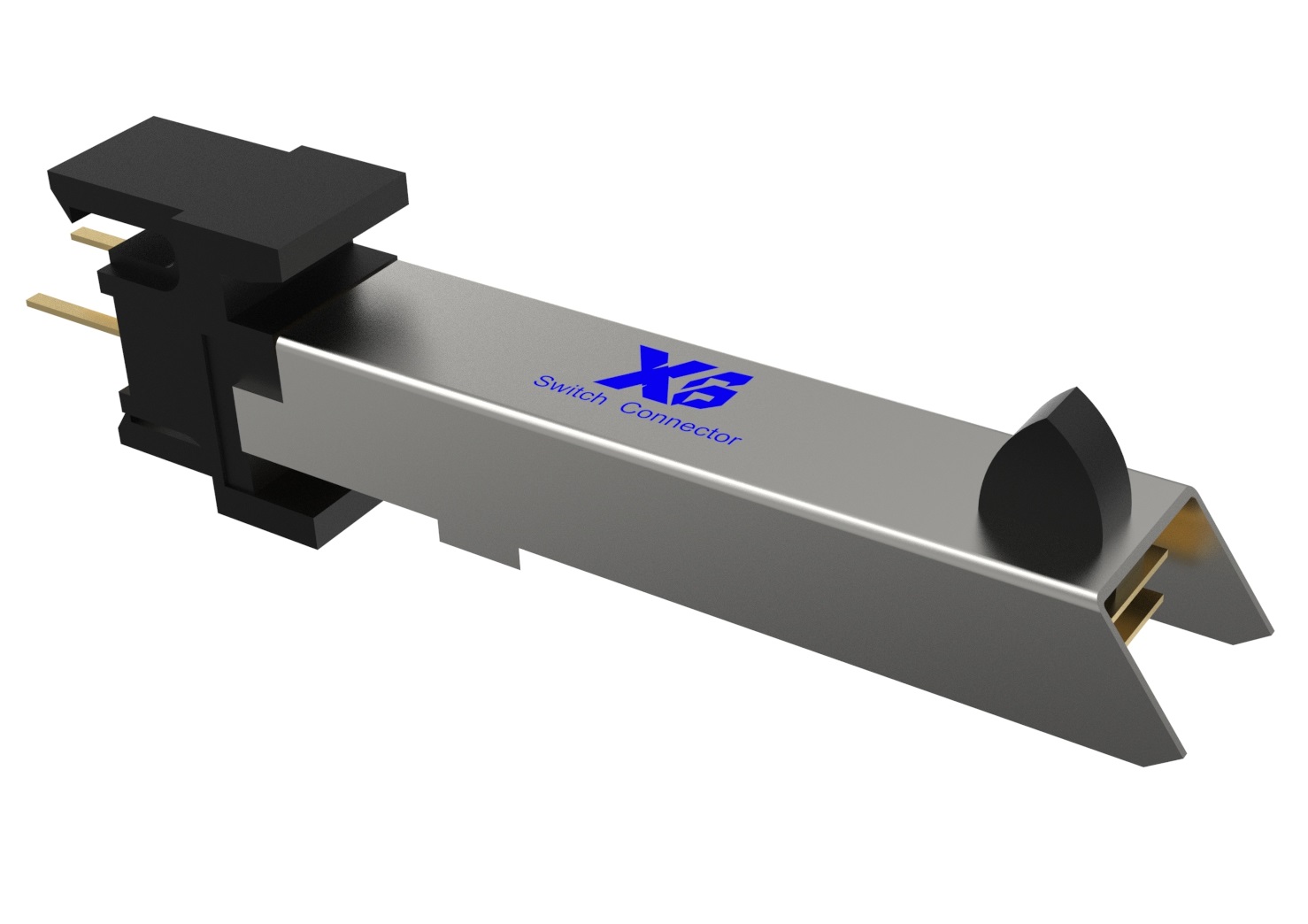

▍Xibang material number：XB-LF-044

Product Name: Blade Switch Rated Current: 0.5A 1A Rated Voltage: 12V 30V DC

Contact resistance: 30m Ω max Insulation resistance: 100M Ω Voltage resistance: 500V

Operating force: 30GF ± 10GF Service life: 50000 times Product certificate: ROHS

3D files and drawings

3D filesXB-LF-044 Specifications YP
3D filesXB-LF-044 Specifications YP
3D filesXB-LF-044 Specifications YP

Part number information
Technical Features
Technical Drawings
Product Specifications

Product ID	Product Image	Product Description	Product Code	Production status	Shipping Cycle	Gross item weight	MPQ	MOQ	Production in transit	Competitive purchases	Operation
XB-LF-044 3D Drawings		Blade switch/blade switch/blade switch normally open and closed/movement blade switch/movement switch/limit switch/reset blade switch/self reset switch/blade switch PUHS ON/blade switch PUHS OFF	8857	Normal	Five days/Seven days	0.36g	1000	1000	Normal production	Compatible Xibang	Consult
XB-LF-044-X 3D Drawings		Blade switch/blade switch/blade switch normally open and closed/movement blade switch/movement switch/limit switch/reset blade switch/self reset switch/blade switch PUHS ON/blade switch PUHS OFF	8857	Normal	Five days/Seven days	0.36g	1000	1000	Normal production	Compatible Xibang	Consult
XB-LF-044-X-X 3D Drawings		Blade switch/blade switch/blade switch normally open and closed/movement blade switch/movement switch/limit switch/reset blade switch/self reset switch/blade switch PUHS ON/blade switch PUHS OFF	8857	Normal	Five days/Seven days	0.36g	1000	1000	Normal production	Compatible Xibang	Consult

product material	1. Blade switch	Material
	2.Base material	POM/PA66
	3.Terminal	Phosphor copper
	4. Touch points	brass
	6.Electroplating	Brass silver plated/brass gold plated

Electrical properties	Operating temperature range	-10℃±60℃
	to maximum rating (resistive load)	0.5A 12V DC
	to minimum rating (resistive load)	0.1A 6V DC
	Operating force	30gf±50gf
	Service life	50,000 times
	Withstand voltage	500V AC
	Insulation resistance	100MΩ
	Contact resistance (initial/after life)	30MΩ

Durability	No load life	50,000 times
	Load life (maximum rated load)	50,000 times

Environmental resistance	Cold resistance	-40±2°C/96h
	Heat resistance	80±2°C/96h
	Moisture resistance	40±2°90 to 95% relative humidity 96/h

For example, in the environment shown in the icon, after 5 cycles, place it in a normal environment and test after 30 minutes.		No signs of damage to mechanical or electrical performance

Product EIA Compliance Document

English version of PPA

SPCC English

Stainless steel English version

Nickel plating English version

English version of tin plating

Silicone English

Brass English

Phosphor copper English version

Compliant with EU RoHS (2011/65/EU) Directive

Complies with EU ELV Directive 2000/53/EC requirements
