XB-BC-18650-1| Product ID | Product Image | Product Description | Product Code | Production status | Shipping Cycle | Gross item weight | MPQ | MOQ | Production in transit | Competitive purchases | Operation |

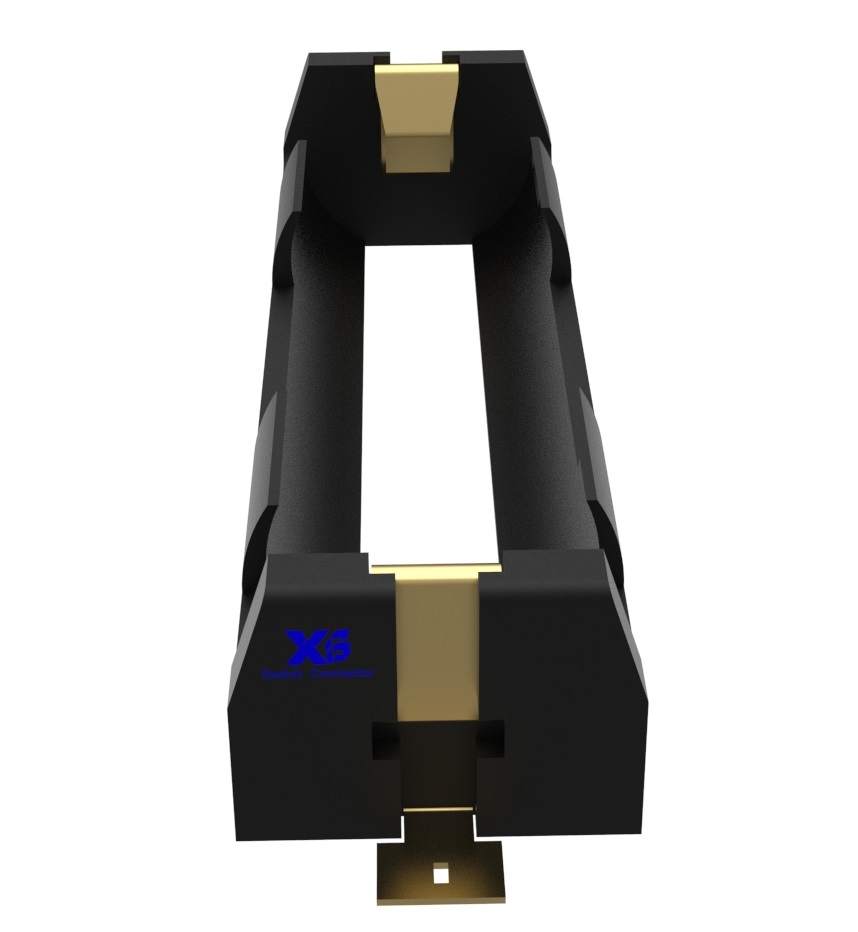

XB-BC-18650-1  3D
 Drawings |
  |
77.05 * 20.65 * 14.86mm battery container one section/battery box two sections/battery compartment three sections/battery box No.5/battery box No.3/battery box connector | Normal | 4~7 days | 0.000 | 5000 | 50000 | 10000 |  Compatible Xibang |
||
| XB-BC-18650-1-X 3D
Drawings |
  |
77.05 * 20.65 * 14.86mm battery container one section/battery box two sections/battery compartment three sections/battery box No.5/battery box No.3/battery box connector | Normal | 4~7 days | 0.000 | 5000 | 50000 | 10000 | Compatible Xibang |
||
| XB-BC-18650-1-X-X 3D
Drawings |
  |
77.05 * 20.65 * 14.86mm battery container one section/battery box two sections/battery compartment three sections/battery box No.5/battery box No.3/battery box connector | Normal | 4~7 days | 0.000 | 5000 | 50000 | 10000 | Compatible Xibang |
| product name | 1. Battery box | material quality |
| 2. The shell | LCP/PA66 UL 94-V | |
| 3. Touch | Brass Gold plated / Brass C2680 | |
| 5. Plastic parts | LCP/PA10T | |
| character of service | Use the temperature range | -40℃±85℃ |
| Maximum rating (resistance load) | 1A 60V DC | |
| Minimum rating (resistance load) | 0.5A 12V DC | |
| Electric performance | withstand voltage | 500V AC |
| insulation resistance | 100MΩ | |
| Contact resistance (initial / post-life) | 30mΩ max./100mΩ max. | |
| lasting quality | No load life | 5000 Times |
| Load life (maximum rated load) | 5000 Times | |
| project | test condition | function |
| Cold resistance | -40℃±3°C 96/h | No indication of any damage to the mechanical and electrical properties |
| resistance to effect of heat | 80℃±2°C 96/h | |
| Moisture resistance | 40℃± 2°C, 90 to 95% RH 96 / h | |
| Salt mist performance | 35°C ± 2°C 4h ± for 15 sec | |
| Temperature alternating experiment: | Like the icon, in the environment, cycle 5 times, then placed in the normal environment, and test after 30 minutes. | |
|
|
||
| Thermal test for return heat welding: | test condition | function |
|
|
The body has no deformation, and can be satisfied with the mechanical and electrical performance | |
| * Temperature refers to the temperature of the PC plate surface | ||
| * The PC plate is 1.0 mm thick | ||
| No lead tin test | ||
| Ingredients: tin 96.5% copper 3% silver 0.5% | ||
| Number of reflow welding: 1 time | ||
