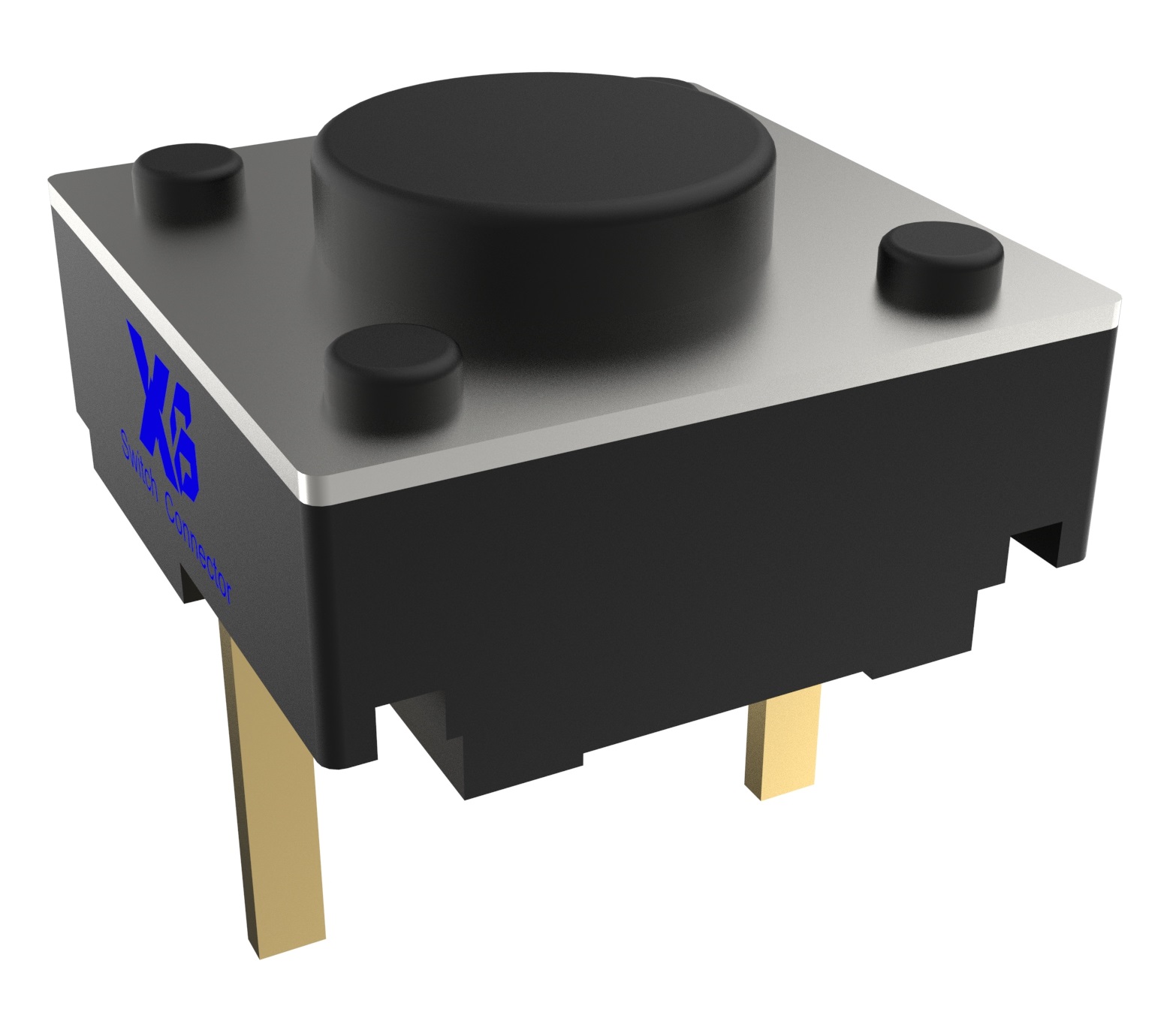

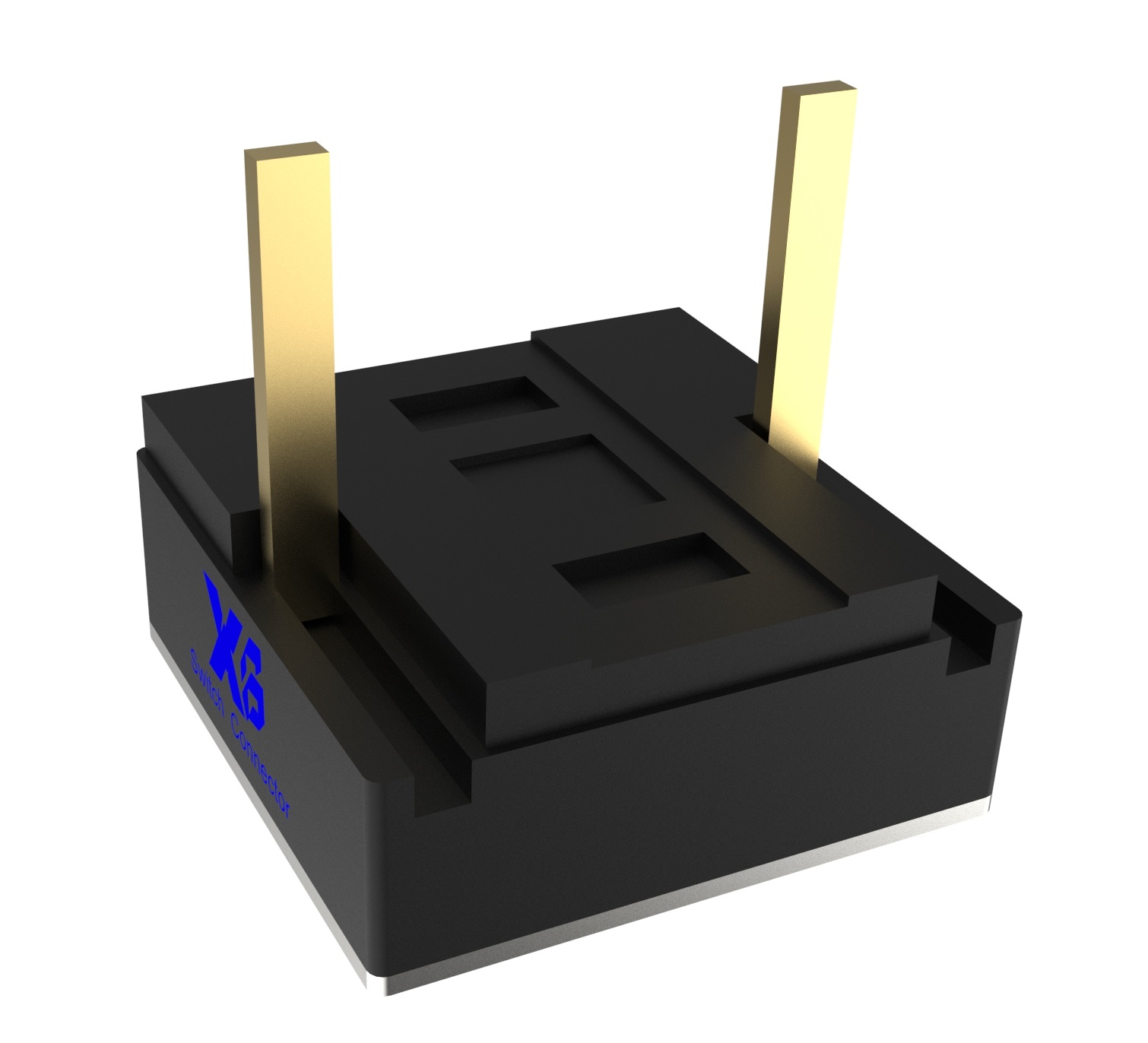

XB-TS-2DV035
3D
Drawings
| Product type features | 1. Tact Switch | material quality |
| 2. Button | PA66 | |
| 3. Shrapnel | SUS | |
| 4. Plastic seat | PA66 | |
| 5. Card parts | POM | |
| qualification | ||
| 1. Operating temperature range: | -25℃±85℃ | |
| 2. Rated value: | 0.3A 30V DC | |
| 3. Insulation resistance: | 100MΩ | |
| 4. Voltage resistance: | 250V AC | |
| 5. Contact resistance: | 30MΩ | |
| 6. Life: | 100,000 times | |
| 7. Action force: | 160gf±50gf 260±50gf | |
| structural property | operating function: | Close (open) |
| Configuration (extreme throw): | Unipolar-double throw | |
| Type of actuator: | The glue handle | |
| Orientation of actuator: | touch sth | |
| Number of actuators: | 1 | |
| Main character | Color (LED light): | Red / blue / yellow / green / white / black |
| Contact features | Terminal substrate: | Brass silver plated |
| Switch terminal electroplating material: | Silver plated / gold plated | |
| machine accessory | Installation Type: | Through-hole / wire / plate |
| Installation Angle: | Plug-in / patch | |
| Shell properties | Process sealing | deny |
| Hand welding | welding temperature | Up to 350℃ |
| weld period | Up to 3s | |
| Return-flow welding heat test: | test condition | function |
|
|
The body has no deformation, and can be satisfied with the mechanical and electrical performance | |
| * Temperature refers to the temperature of the PC plate surface | ||
| * The PC plate is 1.0 mm thick | ||
| No lead tin test | ||
| Ingredients: tin 96.5% copper 3% silver 0.5% | ||
| Relow weld times: 1 | ||
