XB-TC-FS66D-X-X| Product ID | Product Image | Product Description | Product Code | Production status | Shipping Cycle | Gross item weight | MPQ | MOQ | Production in transit | Competitive purchases | Operation |
XB-TC-FS66D-X-X  3D
 Drawings |
  |

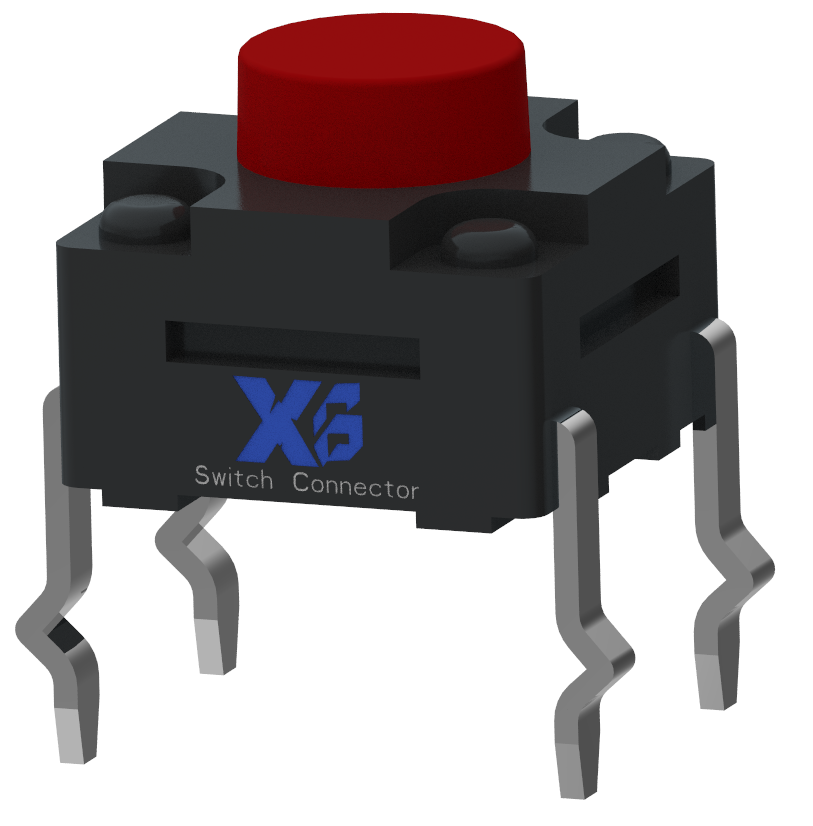

6.1 * 6.1 * 4.3mm light touch switch/button light touch switch/light touch button switch/tactile switch/touch switch/instantaneous button switch/reset button switch/reset button switch | Normal | 10-15 days | 0.00 | 1000 | 50000 | 10000 |  Compatible Xibang |
| Product Material | 1. Tact Switch | material |
| 2. Cover | Brass nickel plating | |
| 3. Base | PA46/PA66 | |
| 4. Contact piece | SUS | |
| 5. Buttons | PA66 | |
| working life | 100000 cycles | |
| Initial contact resistance | 30mΩ max. | |
| Operating temperature range | -20℃ to +70℃ | |
| working temperature | -25℃ to +75℃ | |
| Maximum rated (resistive load) | 0.5A 12V | |
| Minimum rated (resistive load) | 0.1A 6V | |
| Electrical performance | Withstand voltage | 250V AC |
| insulation resistance | 100MΩ min. | |
| Environmental resistance | Cold resistance | -40±2℃ for 96h |
| Heat resistance performance | 85±2℃ for 96h | |
| Moisture resistance | 60 ± 2 ℃, 90 to 95% relative humidity for 96h | |
| Welding conditions | ||
| During automatic immersion welding | Preheating temperature | Up to 110 ℃ |
| Preheating temperature time | Max 60 seconds | |
| welding temperature | Up to 260 ℃ | |
| Welding impregnation time | Max 5s | |
| Welding frequency | Less than 2 times | |
| During manual welding | welding temperature | |
| Up to 360 ℃ | ||
| Continuous welding time | Max 3 seconds | |
| Flux hopper capacity | Maximum 60W | |
