▍Xibang material number：XB-P2504-L332.5

Product Name: Audio Plug Rated Current: 0.5A 1A Rated Voltage: 12V 30V DC Contact Resistance: 30m Ω max

Insulation resistance: 100 M Ω min, withstand voltage: 500V, insertion and extraction force: 3N-30N, extraction force: 3N-15N

Service life: 5000 times Operating temperature: -40~+85 ℃ Installation method: Plugin Product certificate: ROHS

3D files and drawings

3D filesXB-P2504-L332.5 Specifications PJ2.5
3D filesXB-P2504-L332.5 Specifications PJ2.5
3D filesXB-P2504-L332.5 Specifications PJ2.5

Part number information
Technical Features
Technical Drawings
Product Specifications

Product ID	Product Image	Product Description	Product Code	Production status	Shipping Cycle	Gross item weight	MPQ	MOQ	Production in transit	Competitive purchases	Operation

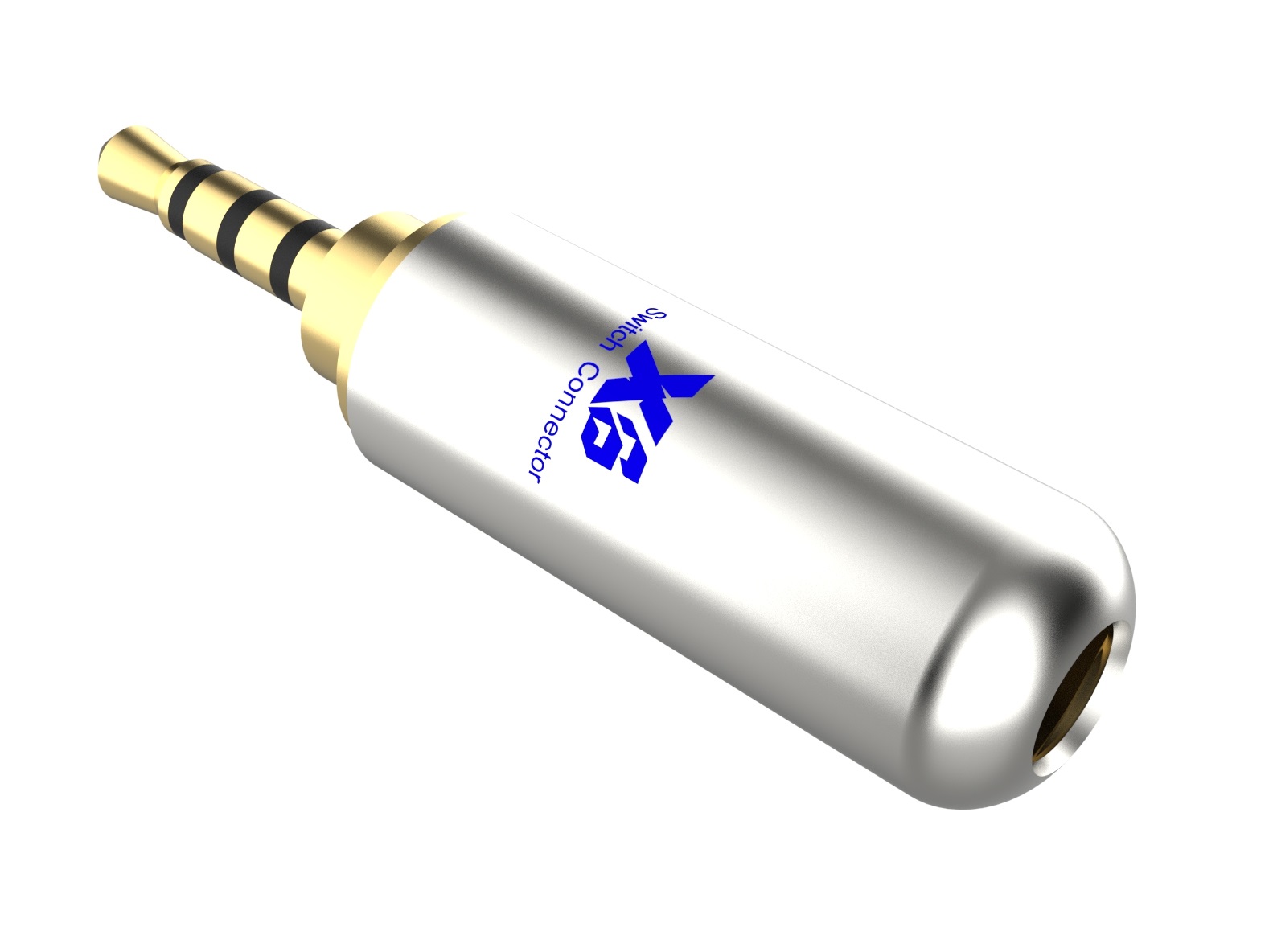

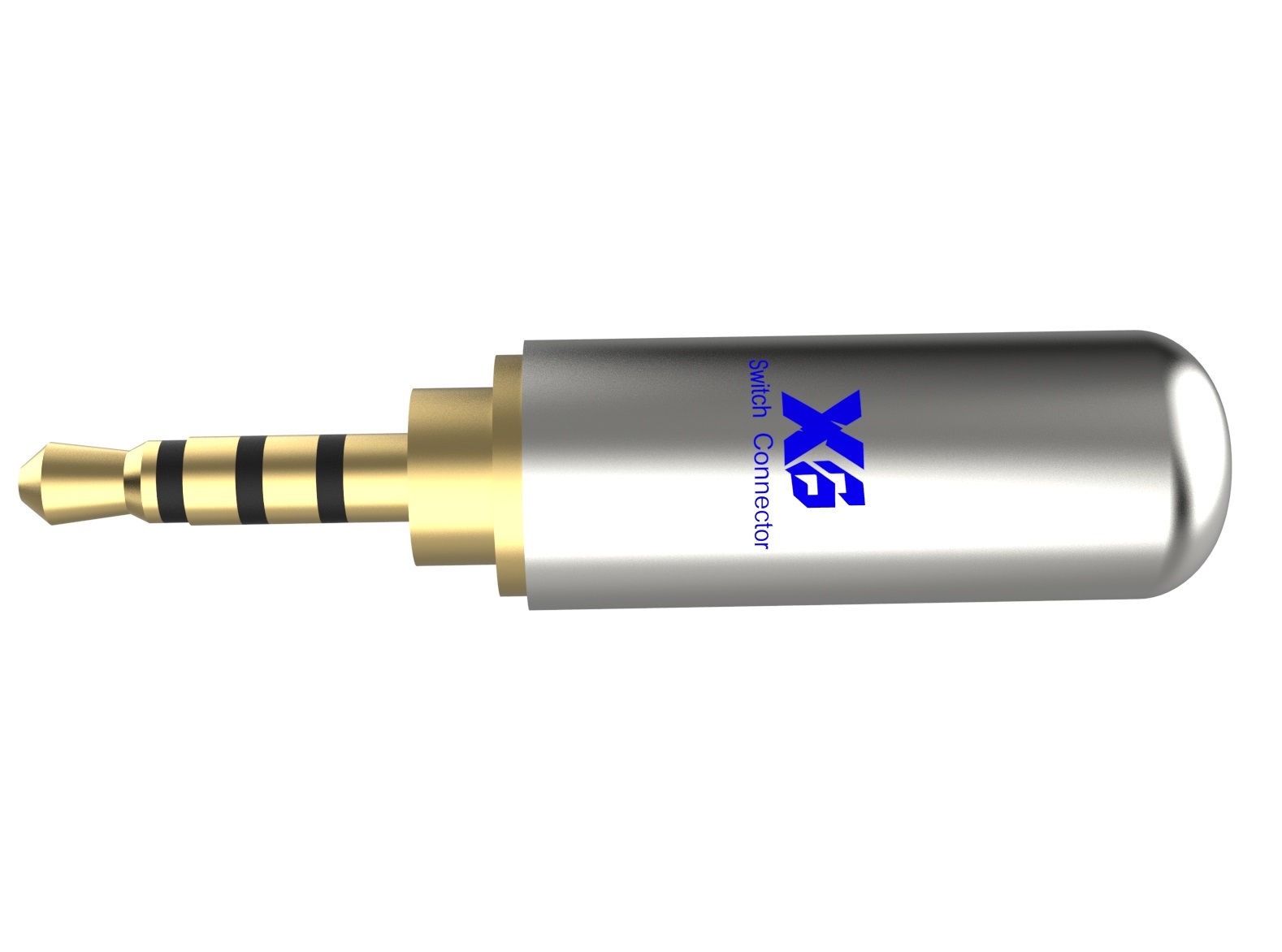

XB-P2504-L332.5 3D Drawings		7.6 * 33.5mm audio plug/2.5 headphone pin/2.5 headphone plug (with nut)/2.5 audio male socket/2.5mm audio plug/2.5 audio plug/2.5 audio plug 1PIN		Normal	1-2 weeks	0.000	1000 pieces/box	50000	10000	Compatible Xibang	Consult
XB-P2504-L332.5-X 3D Drawings		7.6 * 33.5mm audio plug/2.5 headphone pin/2.5 headphone plug (with nut)/2.5 audio male socket/2.5mm audio plug/2.5 audio plug/2.5 audio plug 1PIN		Normal	1-2 weeks	0.000	1000 pieces/box	50000	10000	Compatible Xibang	Consult
XB-P2504-L332.5-X-X 3D Drawings		7.6 * 33.5mm audio plug/2.5 headphone pin/2.5 headphone plug (with nut)/2.5 audio male socket/2.5mm audio plug/2.5 audio plug/2.5 audio plug 1PIN		Normal	1-2 weeks	0.000	1000 pieces/box	50000	10000	Compatible Xibang	Consult

Product material	1. earphone plug	material quality
	2. The lid	yellow metal
	3. Shrapnel	yellow metal
	4. The base	PBT/PA66/POM
	5. Touch	Brass / silver plated / gold plated
	6. Terminal	Brass / silver plated / gold plated

	Use the temperature range	-30°C±85°C
	Maximum rating (resistance load)	1A 30V
	Minimum rating (resistance load)	0.5A 12V

Electric performance	withstand voltage	500V AC
	insulation resistance	100mΩ max

lasting quality	No load life	5000 Times
	load life	5000 Times

Environmental resistance	Cold resistance	-40±3℃ for 96h
	resistance to effect of heat	80±2℃ for 96h
	Moisture resistance	40±2℃, 90 to 95%RH for 96h

1. Temperature change experiment	According to the figure below, after 5 cycles, the test was maintained under normal conditions for 30 minutes.
3. Temperature distribution
3. Temperature distribution
Hand welding	welding temperature	Maximum of 260°C
	preheating time	Maximum 60 seconds
	Continuous impregnation time	Maximum 3 seconds
	Welding times	1

Product EIA Compliance Document

English version of PPA

SPCC English

Stainless steel English version

Nickel plating English version

English version of tin plating

Silicone English

Brass English

Phosphor copper English version

Compliant with EU RoHS (2011/65/EU) Directive
