▍Xibang material number：XB-PGC-CT-23-4P-G

Product Name: Ejection Pin Connector POGO PIN Rated Current:2A Rated Voltage: 12V DC Withstand Voltage: 300V AC

Contact resistance: 30M Ω Insulation resistance: 100M Ω Spring needle force: 60gf ± 20 Welding temperature: 230 ℃± 5 ℃

Plastic base: PA66 Metal material: Brass spring material: Stainless steel SUS electroplating process: Copper gold plating

Installation method: Welding wire/welding plate Service life: 10000 times Height and elasticity: Customizable product compliance: ROHS

3D files and drawings

3D filesXB-PGC-CT-23-4P-G Specifications XB
3D filesXB-PGC-CT-23-4P-G Specifications XB
3D filesXB-PGC-CT-23-4P-G Specifications XB

Part number information
Technical Features
Technical Drawings
Product Specifications

Product ID	Product Image	Product Description	Product Code	Production status	Shipping Cycle	Gross item weight	MPQ	MOQ	Production in transit	Competitive purchases	Operation

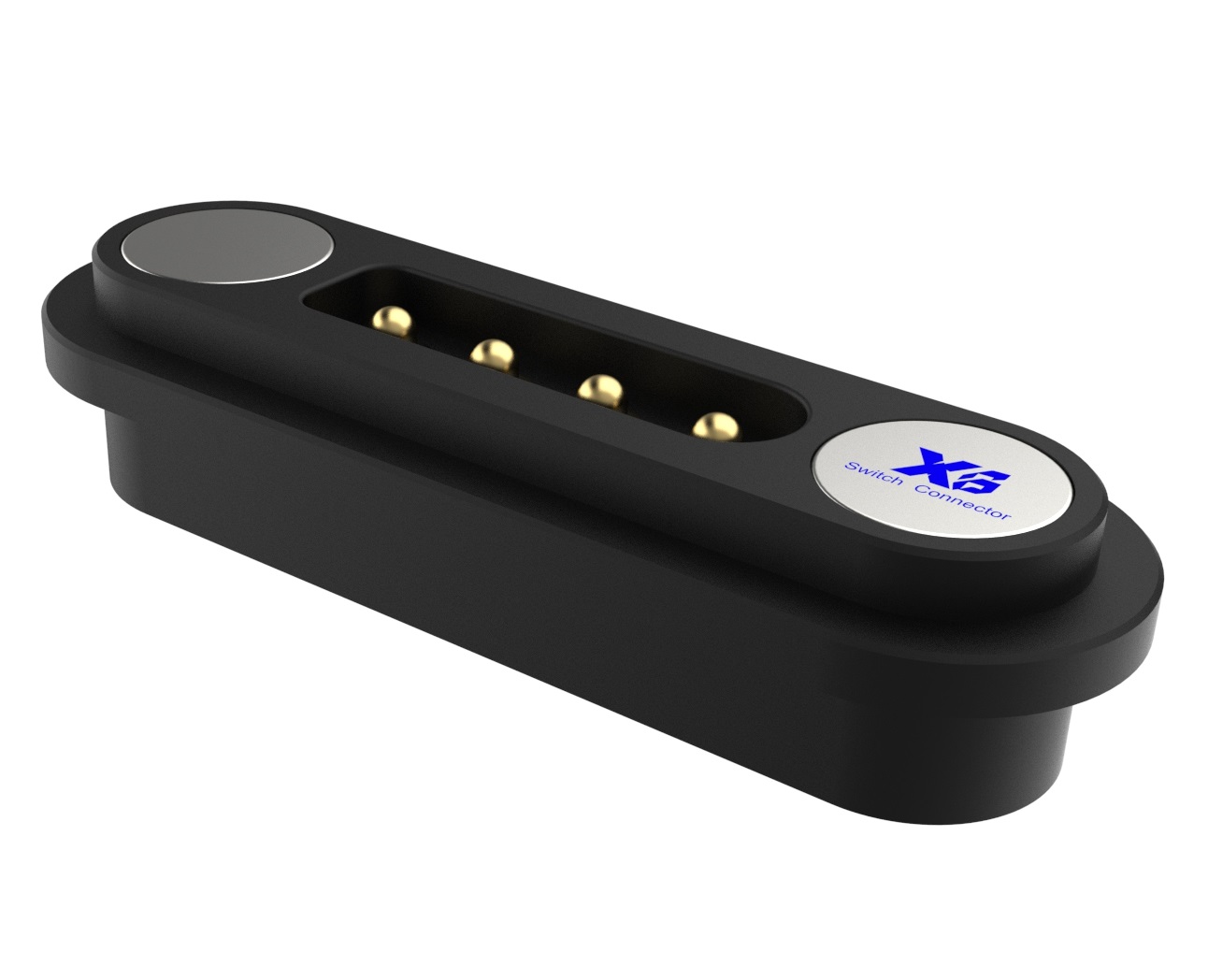

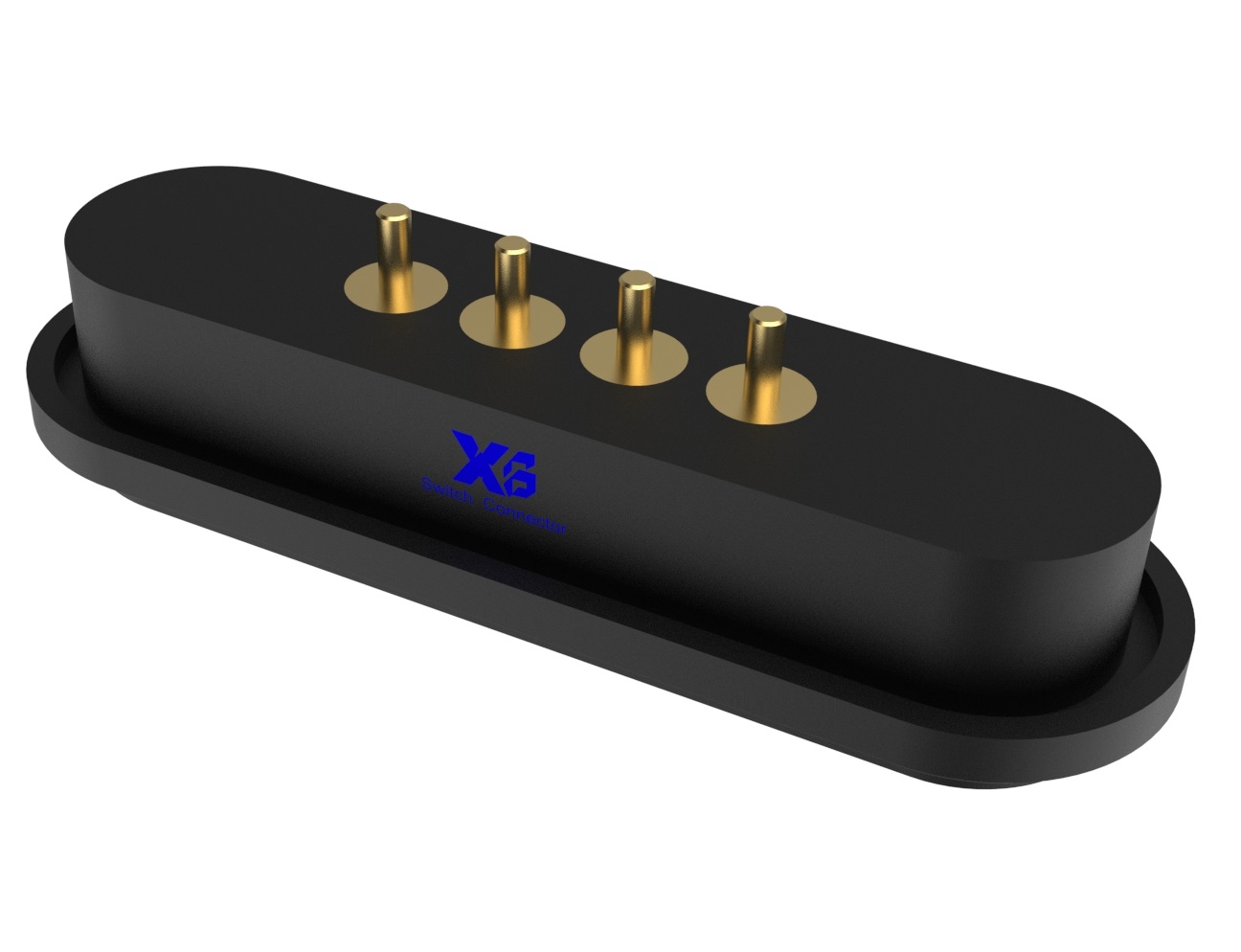

XB-PGC-CT-23-4P-G 3D Drawings		21.9 * 5 * 4.7mm male top pin connector/single row magnetic connector/conductive pin connector/spring pin connector spacing: 2.3mm/POGO foolproof top pin connector 4PIN		Normal	1-2 weeks	0.3g	1000 pieces/bag	5000	10000	Compatible Xibang	Consult
XB-PGC-CT-23-4P-G-X 3D Drawings		21.9 * 5 * 4.7mm male top pin connector/single row magnetic connector/conductive pin connector/spring pin connector spacing: 2.3mm/POGO foolproof top pin connector 4PIN		Normal	1-2 weeks	0.3g	1000 pieces/bag	5000	10000	Compatible Xibang	Consult
XB-PGC-CT-23-4P-G-X-X 3D Drawings		21.9 * 5 * 4.7mm male top pin connector/single row magnetic connector/conductive pin connector/spring pin connector spacing: 2.3mm/POGO foolproof top pin connector 4PIN		Normal	1-2 weeks	0.3g	1000 pieces/bag	5000	10000	Compatible Xibang	Consult

product material	1. Thimble connector	material
	2. Shell	PA66/UL94V-0
	3. Plastic	UL94V-0
	4. Needle	gold plated brass
	5. Spring	SUS

	Operating temperature range	-55°C±105°C
	Maximum rating (resistive load)	2A 12V DC
	Minimum rating (resistive load)	1A 6V DC

electrical properties	withstand voltage	300V AC
	Insulation resistance	100mΩmax
	spring force	60gf±20%
	Contact resistance	30mΩmax

Durability	no load life	10000 times
	load life	10000 times

Environmental resistance	Salt spray test	35°±2°C 24h±1h

Solderability Test	Dip the bottom of the spring pin into the solder pool 2mm deep	More than 95% of the surface of the immersed part is covered with tin
	Temperature: 230°±5°C
	Time: 3±0.5s

Product EIA Compliance Document

English version of PPA

SPCC English

Stainless steel English version

Nickel plating English version

English version of tin plating

Silicone English

Brass English

Phosphor copper English version

Compliant with EU RoHS (2011/65/EU) Directive
